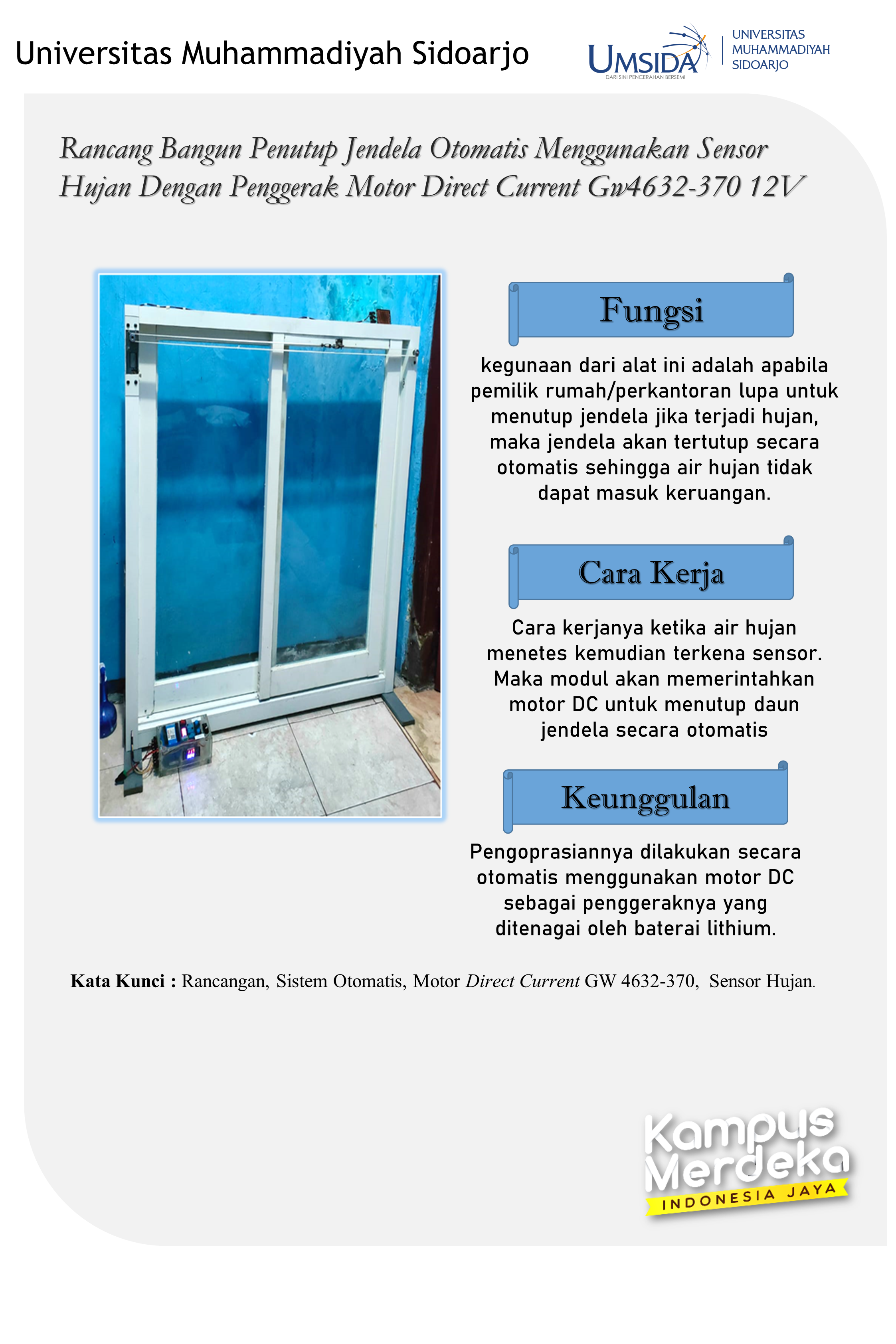

Automatic Window Cover Design Using Rain Sensor With Motor Direct Current Gw4632-370 12v
Rancang Bangun Penutup Jendela Otomatis Menggunakan Sensor Hujan Dengan Penggerak Motor Direct Current Gw4632-370 12v
DOI:
https://doi.org/10.21070/ups.1474Keywords:
Design, Automatic System, GW 4632-370 Direct Current Motor, Rain SensorAbstract
The daily activities of a person and office usually open and close windows so that air and oxygen can circulate in the room. Lately it often rains in Indonesia, someone often forgets to close the window so that rainwater can enter the room, therefore a research was made on automatic tools to close windows in homes or offices. The results of the research on the design of automatic window coverings using a rain sensor are where when it rains outside so that water can enter the house, the automatic system on the module will work and instruct the shutters to move to close by means of the module getting energy supply from the battery to drive the direct current motor GW4632-370 so that there is a closing motion on the sliding window, the working voltage of the rain sensor is 3.388 V and the closing speed is 5.6 cm/second.
Downloads
References
R. D. Nasution, “Pengaruh Perkembangan Teknologi Informasi Komunikasi terhadap Eksistensi Budaya Lokal,” J. Penelit. Komun. dan Opini Publik, vol. 21, no. 1, hal. 30–42, 2017.
G. A. 2013 Dwinata, “Pengaruh perkembangan di zaman modern”.
S. Bambang, “Pengembangan Trainer Sensor Jarak Dan Warna Sebagai Media Pembelajaran Pada Mata Kuliah Komponen Elektronika Di Universitas Negeri Surabaya,” J. Pendidik. Tek. Elektro, vol. 4, no. 1, hal. 125–129, 2014.
A. Asrul, S. Sahidin, dan D. Arista, “Prototype Perancangan Sistem Otomatis Penutup Jendela Kaca dan Penggerak Wiper Pada Mobil Berbasis Arduino Uno R3,” Jutkel J. Telekomun. …, 2020, [Daring]. Tersedia pada: https://ummaspul.e-journal.id/Jutkel/article/download/358/193
M. Ridwan, D. Indra, dan E. I. Alwi, “655-Rancang Bangun Alat Jemur Pakaian Otomatis Menggunakan Microkontroler Arduino,” vol. 1, no. 4, hal. 251–258, 2020.
A. Faroqi, E. P. Hadisantoso, D. K. Halim, dan M. S. WS, “Perancangan alat pendeteksi kadar polusi udara menggunakan sensor gas MQ-7 dengan teknologi wirelles HC-05,” J. ISTEK, vol. 10, no. 2, hal. 33–47, 2016, [Daring]. Tersedia pada: https://journal.uinsgd.ac.id/index.php/istek/article/view/1476
R. L. Singgeta dan R. Rumondor, “Rancang Bangun Dispenser Otomatis Menggunakan Sensor Ultrasonik Berbasis Mikrokontroller Atmega2560,” J. Ilm. Realt., vol. 14, no. 1, hal. 31–36, 2018, doi: 10.52159/realtech.v14i1.113.
Y. Tiandho, “Miskonsepsi gaya gesek pada mahasiswa,” J. Pendidik. Fis. dan Keilmuan, vol. 4, no. 1, hal. 1, 2018, doi: 10.25273/jpfk.v4i1.1814.
H. Firdaus, “RANCANG BANGUN PENGGERAK PINTU PAGAR GESER MENGGUNAKAN 12 VOLT DIRECT CURRENT (DC) POWER WINDOW MOTOR GEAR,” Univ. Galuh, vol. 1999, no. December, hal. 1–6, 2006.
G. Mercado, “Peril,” Filmmak. Eye Lang. Lens, vol. 4, no. 1, hal. 76–77, 2019, doi: 10.4324/9780429446894-16.
